Unit EC 75

Ref. : 220-23

Starting from 1 579.00€Price upon request

To order this product

If you don't have an account, Sign up

Contact us

+33 2 47 29 80 50

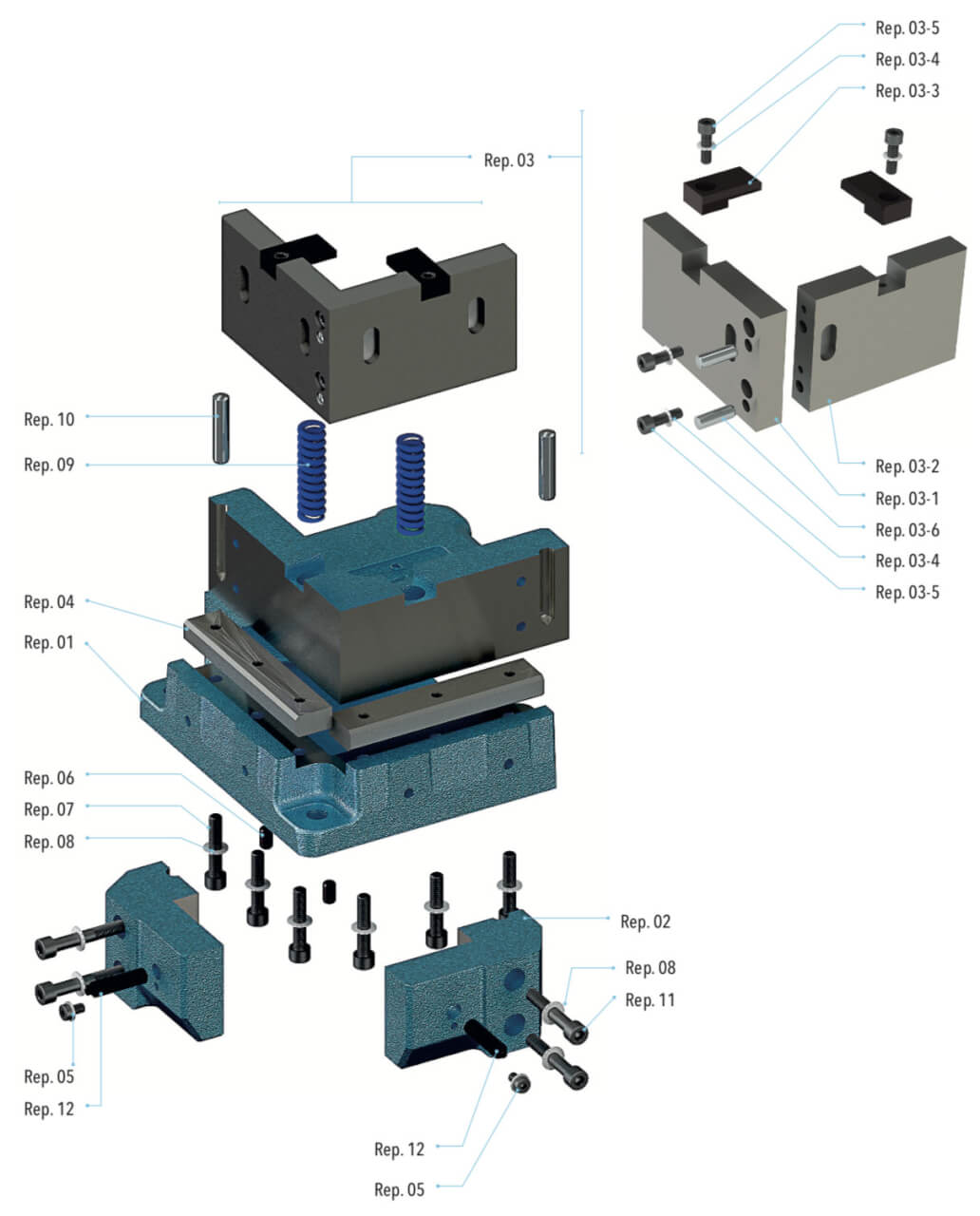

Components

1

Left cast iron body E75/EC75 Art.220-19-31114000

Ref : 220-19-31114000

See details

Qté

Log in To order
1

Right cast iron body E75/EC75 Art.220-19-31115000

Ref : 220-19-31115000

See details

Qté

Log in To order
2

Punch guide EC75 Art.220-23-31116000

Ref : 220-23-31116000

See details

Qté

Log in To order
3

Complete punch EC75 Art.220-23-32101000

Ref : 220-23-32101000

See details

Qté

Log in To order
3-1

Punch blade Art.220-19-31142000

Ref : 220-19-31142000

See details

Qté

Log in To order
03-2

Punch blade Art.220-19-31143000

Ref : 220-19-31143000

See details

Qté

Log in To order
03-3

Lifting bar E75/EC75/E125/EC125 Art.220-19-31145000

Ref : 220-19-31145000

See details

Qté

Log in To order
03-4

Washer Art.520-1306-6

Ref : 520-1306-6

See details

Qté

Log in To order
03-5

Screw Art.520-1110-6X20

Ref : 520-1110-6X20

See details

Qté

Log in To order
03-6

Pin Art.520-1410-8X30

Ref : 520-1410-8X30

See details

Qté

Log in To order
4

Blade die E75 Art.220-19-31105000

Ref : 220-19-31105000

See details

Qté

Log in To order
5

Screw Art.520-1111-6X10

Ref : 520-1111-6X10

See details

Qté

Log in To order
6

Locating pin Art.220-00-01060500

Ref : 220-00-01060500

See details

Qté

Log in To order
7

Screw Art.520-1110-8X40

Ref : 520-1110-8X40

See details

Qté

Log in To order
13-8

Washer Art.520-1306-8

Ref : 520-1306-8

See details

Qté

Log in To order
9

Return spring Art.520-190-00804500

Ref : 520-190-00804500

See details

Qté

Log in To order
10

Pin Art.520-1410-10X45

Ref : 520-1410-10X45

See details

Qté

Log in To order
11

Screw Art.520-1110-8X50

Ref : 520-1110-8X50

See details

Qté

Log in To order
12

Stop Art.220-00-01026000

Ref : 220-00-01026000

See details

Qté

Log in To order
13

Complete square guide with slider E75/EC75

Ref : 220-19-31100500

See details

Qté

Log in To order
13-1

Support guide E75/EC75 Art.220-19-31146000

Ref : 220-19-31146000

See details

Qté

Log in To order
13-2

Mobile guide right E/EC/EEC Art.220-19-31148000

Ref : 220-19-31148000

See details

Qté

Log in To order
13-3

Mobile guide left E/EC/EEC Art.220-19-31149000

Ref : 220-19-31149000

See details

Qté

Log in To order
13-4

Set screw E75/E125/EC75/EC125/EEC125 Art.220-19-00454500

Ref : 220-19-00454500

See details

Qté

Log in To order
13-5

Measuring tape E75/E125/EC75/EC125/EEC125 Art.220-19-01087500

Ref : 220-19-01087500

See details

Qté

Log in To order
13-6

Locking screw Art.520-23-01075500

Ref : 520-23-01075500

See details

Qté

Log in To order
13-7

Screw Art.520-1110-8X25

Ref : 520-1110-8X25

See details

Qté

Log in To order
13-9

Screw Art.520-1120-4X12

Ref : 520-1120-4X12

See details

Qté

Log in To order

Associated products

Unit EC 125

Ref. : 220-24

Discover

We accompany you for the assembly of your units

The SUPRA Technologies team supports you since 1955 for sheet metal work, tube and profile. Don ‘t hesitate to contact us in order to optimize your presses and various combinations. We make sure in all cases of the feasibility of these and the material ordered on line.
